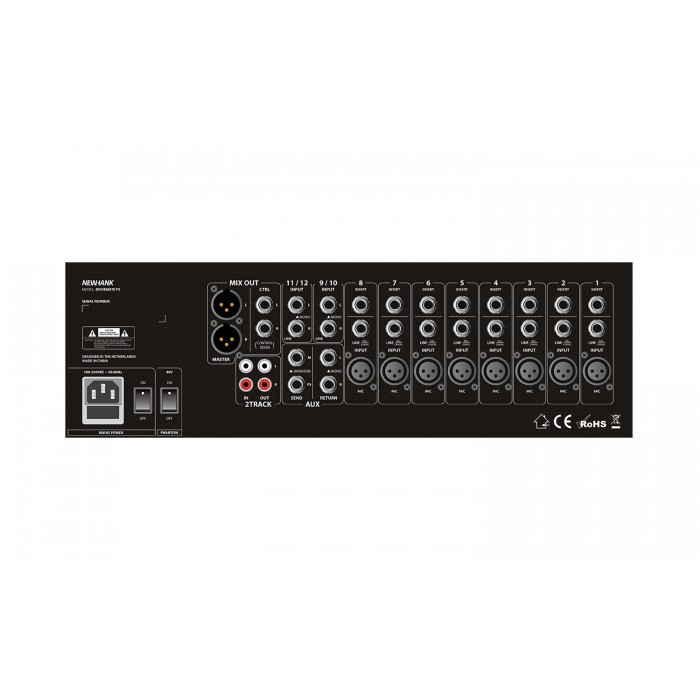

The DRIVEMATE FX is a versatile 12-channel mixer designed for seamless integration into live sound, studio, and fixed installation environments. Its 19″ rack-mountable form factor ensures a space-efficient solution without compromising on functionality.
DRIVEMATE FX comes with advanced features like onboard FX processing, flexible routing options, and comprehensive input/output configurations, it is designed to handle diverse audio needs across commercial, educational, and entertainment applications.
Equipped with intuitive controls and rugged construction, it delivers reliable performance while integrating effortlessly into any professional AV setup. Perfect for users who demand quality, exibility, and precision.

Key Features

• 12 Channels: 8 Mono Mic/Line with Gain, EQ, Pan, and Level; 2 Stereo for keyboards or media players.
• FX Module: 16 presets like reverb, delay, and chorus with a dedicated FX bus for routing.
• AUX Support: 1 AUX Send for monitors/effects and a stereo AUX Return for external
  sources.
• Ergonomic Design: Intuitive controls and rugged build for reliable performance.
• Rack-Mountable: Compact 19″ design for seamless integration in rack setups.

• Frequency response (Mic in @20dB): 10Hz - 22kHz +/- 1dB
• Singal-to-noise Ratio: >90dB
• THD (Mic in @ -20dB): 0.01%
• Preamp Noise (EIN 150Ω source): < 114dB
• Residual Output Noise: < 95dB
• CMRR (Max Gain): > 50dB @ 1kHz
• Crosstalk (On adjecent channels): < 65dB
• Power supply: 100-250VAC, 50-60Hz
• Power consumption: 25 Watt
• Weight: 3,75kg; 8,3lbs
• Dimensions: 483x133x162mm (19", 3U)
• Master carton: 2pcs
• Dimensions: 535x255x185mm; Master carton : 560x285x390mm.
• Weight: 4,5kg; 10lbs; Master Carton: 10,2kg; 22.5lbs
• Compliance: CE; RoHS
• Warranty: 2 years limited warranty

Update: 01-07-2025
